Homeplug AV2 Standard Compliant
Provides users with stable, high-speed data transfer rates of up to 1000 Mbps on a line length of up to 300 meters

Dual Band 802.11ac WiFi
AC1200 dual band Wi-Fi (867Mbps on 5GHz & 300Mbps on 2.4GHz) allows streaming, gaming, emailing, browsing and posting on your wireless devices, throughout your home

Wi-Fi Auto-Sync
Simply copy your router's Wi-Fi settings and apply any changes across the secure powerline network with Wi-Fi Clone and Wi-Fi Move

Gigabit Ethernet Port
Provide reliable high-speed wired connections for game consoles, smart TVs, and NAS

Plug, Pair and Play
Quickly set up a secured Powerline network

OneMesh
Works with your OneMesh router to form a unified mesh network for seamless streaming while moving around your home

Extend Wired and Wireless Network Using Electrical System

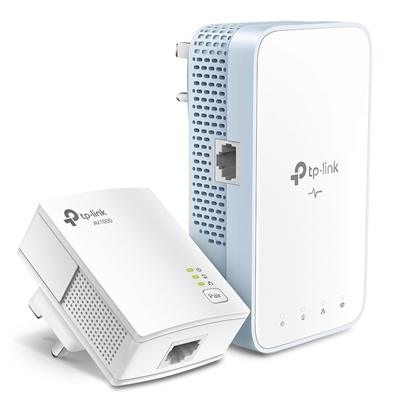

TL-WPA7517 KIT transforms your home’s existing electrical circuit into a Gigabit network, and brings wired and wireless network to anywhere there is a power outlet.

> No need for drilling or wire installation
> Network passes through walls and floors
> Expand coverage by adding more extenders
> Powerline adapters must be deployed in sets of two or more and be connected to the same electrical circuit

AV1000 Speeds and 300 Meters Range
Using advanced HomePlug AV2 technology, TL-WPA7517 KIT ensures stable and high-speed Wi-Fi and wired connection, providing data transmissions of up to 1000 Mbps over the electrical wiring for ranges up to 300 meters. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.

AC1200 Wi-Fi for an Advanced Online Experience
With the 802.11ac Wi-Fi technology, the TL-WPA7517 operates a dual band Wi-Fi network (simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz) with more bandwidth and less interference, maximizing the performance of your powerline network.

One Tap for a Unified Network
One-Touch Wi-Fi Configuration
Instantly copies your network name and password from your router for easy setup.

Gigabit Ethernet for Fast Wired Connections
One Gigabit Ethernet port provides reliable high-speed wired connection for a bandwidth intensive device, such as game consoles, smart TVs, STB and more, or connects multiple devices by adding a switch. Two Ethernet cables are included in the box.

Powerline Management on Your Smartphone
Manage your powerline Wi-Fi through tpPLC app from your smartphone (Android, iOS), or download new tpPLC Utility on PCs to manage the powerline network.

View real-time powerline speed
LED control (also controlled by LED On/Off button)
Guest network

Specifications

Transmission Speeds
Powerline: Up to 1000 Mbps
Ethernet: 10/100/1000 Mbps

Transmission Distance
Up to 300 meters/1000 feet over existing electrical wiring

Standards and Protocols
HomePlug AV2
IEEE 1901
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.11b/g/n (2.4 GHz)
IEEE 802.11a/n/ac (5 GHz)

Compatibility
Compatible with all HomePlug AV & AV2 standard powerline adapters

Interface
TL-WPA7517: 1x Gigabit Ethernet Port
TL-PA7017: 1x Gigabit Ethernet Port

Button
Pair
LED On/Off
Wi-Fi Clone
Reset

Max. Power Consumption
TL-WPA7517: Maximum: 11W, Typical: 6.5W
TL-PA7017: Maximum: 2.9W, Typical: 2.6W

LED
Power
Powerline
Ethernet
Wi-Fi (2.4 GHz)
Wi-Fi (5 GHz)

Wireless Standards
TL-WPA7517: IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n/ax 2.4 GHz
TL-PA7017: N/A

Frequency
TL-WPA7517: 2.4 GHz and 5 GHz
TL-PA7017: N/A

Signal Rate
TL-WPA7517: 300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz
TL-PA7017: N/A

Mesh Technology
OneMesh Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh helps you create a more flexible network that covers your entire home with TP-Link OneMesh products.

Security
Powerline: 128-bit AES Encryption
Wireless: WPA-PSK / WPA2-PSK, WEP Encryptions

Management Features
TP-Link tpPLC App, or download new tpPLC Utility on PCs.

Modulation Technology
OFDM (PLC)

Network Services Enabled by Default
Web Server
Manage and configure device through web (HTTP/HTTPS)
Port: 80/443 Protocol: TCP

DHCP Server
IP address assignment (DHCP)
Port: 67 Protocol: UDP

Onemesh management
Onemesh Configuration (Synchronization & Communication)
Port: 20001 Protocol: TCP
Port: 20002 Protocol: UDP

App management
Manage and configure device through app
Port: 1040 Protocol: UDP

Dimensions (W x D x H)
TL-WPA7517: 2.7 x 1.4 x 4.9 in (69.5 x 35 x 124.1 mm)
TL-PA7017: 2.0 x 1.1 x 2.6 in (52 x 28.5 x 65 mm)

Certification
CE, RoHS

System Requirements
Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux

Package Content
AV1000 Powerline Wi-Fi Kit: TL-WPA7517 & TL-PA7017
2x Ethernet Cables
1x Quick Installation Guide
