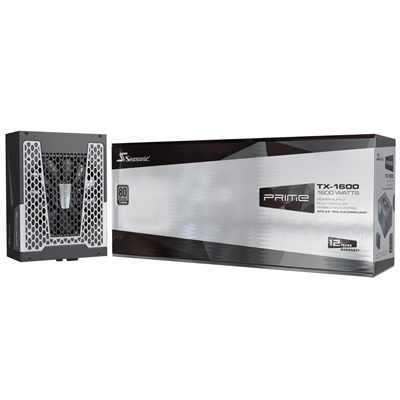

Seasonic PRIME TX ATX 3.1 (PRIME-TX-1600-ATX30) 1600W PSU, 135mm Fan, 80 PLUS Titanium, Fully Modular, Individual Black Cables with Braided Pattern, 12 Years Warranty
£479.36
£399.47 ex. VAT
Secure checkout
Brighton-based experts
Pre-tested products
Product Details
Seasonic PRIME TX ATX 3.1 Series
The Seasonic PRIME TX ATX 3.1 Series is built on top of all the great features of PRIME TX platform with added ATX 3.1 and PCIe 5.1 compatibility. Currently the 1600 W and 1300 W units are equipped with native 12V-2×6 connectors, Digital Fan Control, and 105°C-rated Japanese electrolytic capacitors guarantee unwavering power delivery and long-term durability. All these qualities make these power supplies perfect to welcome the newest high power graphic cards and processors on the market. The Seasonic PRIME ATX 3.0 Series power supplies were initially shipped with 12VHPWR cables. Following the update to the ATX 3.1 standard, we began replacing these with the new 12V-2x6 connectors. During this transition period, customers may receive either 12VHPWR or 12V-2×6 cables in the box. We apologize for any inconvenience this may cause. Please note that availability may vary by region.
ATX 3.1 and 16-Pin PCIe Gen 5 Cable (12V-2x6)
Seasonic’s latest PRIME ATX 3.1 Series is designed and built to power new PC components requiring the new ATX 3.1 and PCIe 5.1 standards.
Micro Tolerance Load Regulation
Seasonic’s latest design keeps the output voltage within a very tight range, achieving under 0.5 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.
Digital Hybrid Fan Control
Seasonic’s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art digital fan control that enables users to keep the overall fan noise at the lowest possible level.
Note: The Digital Hybrid Fan Control chart is provided for reference only. The shape of the curve can look different due to the variability in ambient temperature, system set-up, air flow, and other unpredictable factors.
Fluid Dynamic Fan Bearing
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
Specifications
80PLUS
Titanium
Cybenetics Efficiency Level
Titanium
Cybenetics Noise Level
Lambda A
Form Factor
ATX/EPS
Dimensions 210 x 150 x 86 mm
Fan Information
Fan Size 135 mm
Fan Control Digital Hybrid Fan Control
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40C, 15 % - 65 % RH
Cable Information
Modularity Fully Modular
Cable type Individual Black Cables with Braided Pattern
Electrical Features
Operating Temperature 0 - 50 C
MTBF @ 25 C, excl. fan 100,000 hours
AC Input Full Range
Protection OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental
Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty
12 Years
Power Output
AC Input
100 V - 240 V
15 - 10 A
50 Hz - 60 Hz
DC Output
Rail +3.3 V +5 V +12 V -12 V +5 VSB
Maximum Power 25 A 25 A 133.3 A 0.5 A 3 A
125 W 1600 W 6 W 15 W
Total continuous power 1600 W 115-240Vac, 1300 W 100-240 Vac
