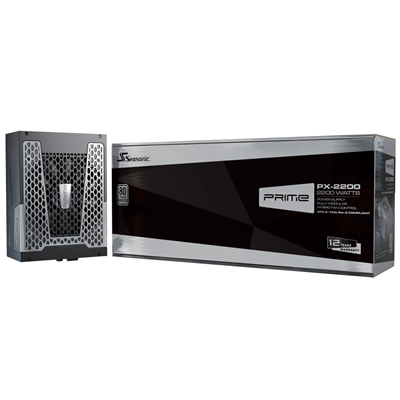

Seasonic PRIME PX ATX 3.1 (PRIME-PX-2200-ATX30 ) 2200W PSU, 135mm Fan, 80 PLUS Platinum, Fully Modular, Individual Black Cables with Braided Pattern, 12 Years Warranty
£523.22
£436.02 ex. VAT
Secure checkout
Brighton-based experts
Pre-tested products
Product Details
PRIME PX ATX 3.1
When selecting a power supply, it’s crucial to estimate the required power for both current and future components in your system. The Seasonic PRIME PX-2200 is a robust power supply capable of safely powering up to four RTX 4090 graphics cards, thanks to its adherence to ATX 3.1 and PCIe 5.1 specifications. Designed for demanding applications such as artificial intelligence and other high-power workloads, this flagship unit from the PRIME series delivers top-tier performance built on high-quality components.
ATX 3.1 and 16-Pin PCIe Gen 5.1 Cable (12V-2x6)
Seasonic’s latest PRIME ATX 3.1 Series is designed and built to power new PC components requiring the new ATX 3.1 and PCIe 5.1 standards.
Micro Tolerance Load Regulation
Seasonic’s latest design keeps the output voltage within a very tight range, achieving under 1 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.
Digital Hybrid Fan Control
Seasonic’s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art digital fan control that enables users to keep the overall fan noise at the lowest possible level.
Note: The Digital Hybrid Fan Control chart is provided for reference only. The shape of the curve can look different due to the variability in ambient temperature, system set-up, air flow, and other unpredictable factors.
Fluid Dynamic Fan Bearing
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
Specifications
80PLUS
Platinum
Cybenetics Efficiency Level
Titanium
Cybenetics Noise Level
Standard++
Form Factor
ATX/EPS
Dimensions
210 x 150 x 86 mm
Fan Information
Fan Size 135 mm
Fan Control Digital Hybrid Fan Control
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information
Modularity Fully Modular
Cable type Individual Black Cables with Braided Pattern
Electrical Features
Operating Temperature 0 - 50 C
MTBF @ 25 C, excl. fan 100,000 hours
AC Input Fixed 230 V
Protection OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental
Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty
12 Years
Power Output
AC Input
200 V - 240 V
15 A
50 Hz - 60 Hz
DC Output
Rail +3.3 V +5 V +12 V -12 V +5 VSB
Maximum Power 25 A 25 A 183.3 A 0.5 A 3 A
125 W 2200 W 6 W 15 W
Total continuous power 2200 W
